Disc Filters
Features
- Flow passes through outside to Inside of Screen cartridge.
- Threaded Brass insert, 2 pressure ports for increasing operational life of filter.
- Surface sealing design, O-ring on periphery of the barrel to ensure the sealing and prevent leakage with time.
- New Complete Plastic Clamp for fast assembly and disassembly the filter housing.
- Easy Disc cartridges installation inside the filter.
- Barrels equipped with I" Vacuum Breaker to release / intake of air and prevent filter from damage.
Specifications
| Model | HT – 534T | HT – 534TL | HT – 535T | HT – 535TL | HT – 536T | HT – 536TL | |
|---|---|---|---|---|---|---|---|
| Max.Working pressure | kg/cm2 | 4 | 4 | 4 | 4 | 4 | 4 |
| Recommended flow | Lit/Min | 417 | 500 | 500 | 667 | 667 | 833 |
| M3/hr | 25 | 30 | 30 | 40 | 40 | 50 | |
| Range of flow rate | M3/hr | 18 – 27 | 22 – 35 | 25 – 35 | 35 – 45 | 35-45 | 45-32 |
| Filter Disc ( standard) | 120 Mesh (Red color Polypropylene Disc) | ||||||
| Filtration surface area | Cm2 | 878 | 1193 | 878 | 1193 | 1193 | 1690 |
| Inlet/Outlet connection | BSP/ Flanged | 2” male threaded | 21/2 male threaded | 3” male threaded | |||
| Closing system | Polypropylene Glass filled Clamp | ||||||
| Distance between end connection | mm | 337 | 337 | 339 | 339 | 340 | 340 |
| Max . filter height ( With 1” V.B.) | Mm | 550 | 635 | 560 | 635 | 640 | 772 |
| Max . filter Width (3/4” Drain valve) | Mm | 337 | 337 | 337 | 337 | 337 | 337 |
| Cartridge Diameter (With o-ring) | Mm | 122 | 122 | 122 | 122 | 122 | 122 |
| Cartridge Length | Mm | 305 | 305 | 388 | 305 | 388 | 515 |
Drain Valve | ¾ “M x ¾”F | ||||||

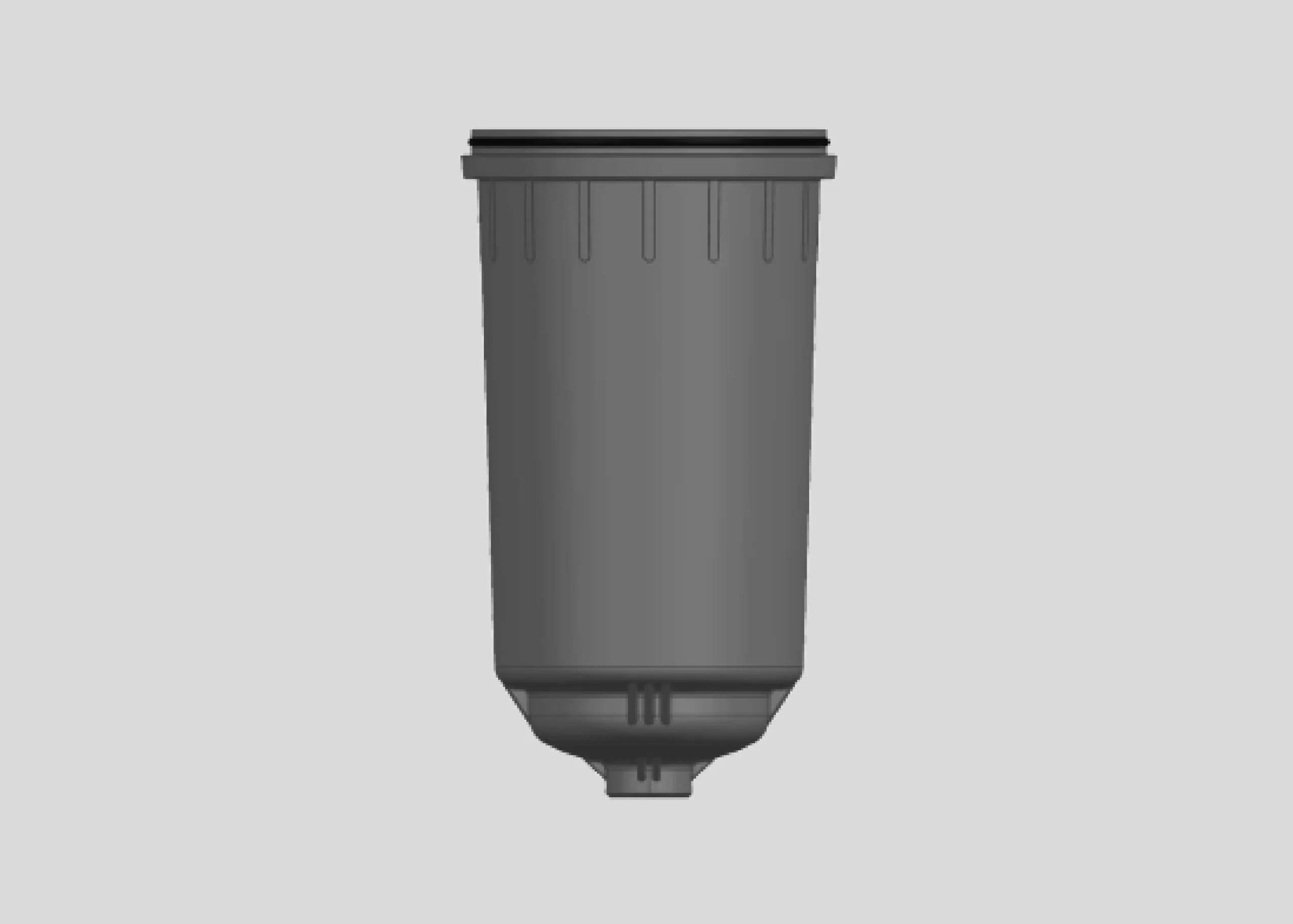

O-ring at filter Barrel outer periphery
Plastic Clamp
