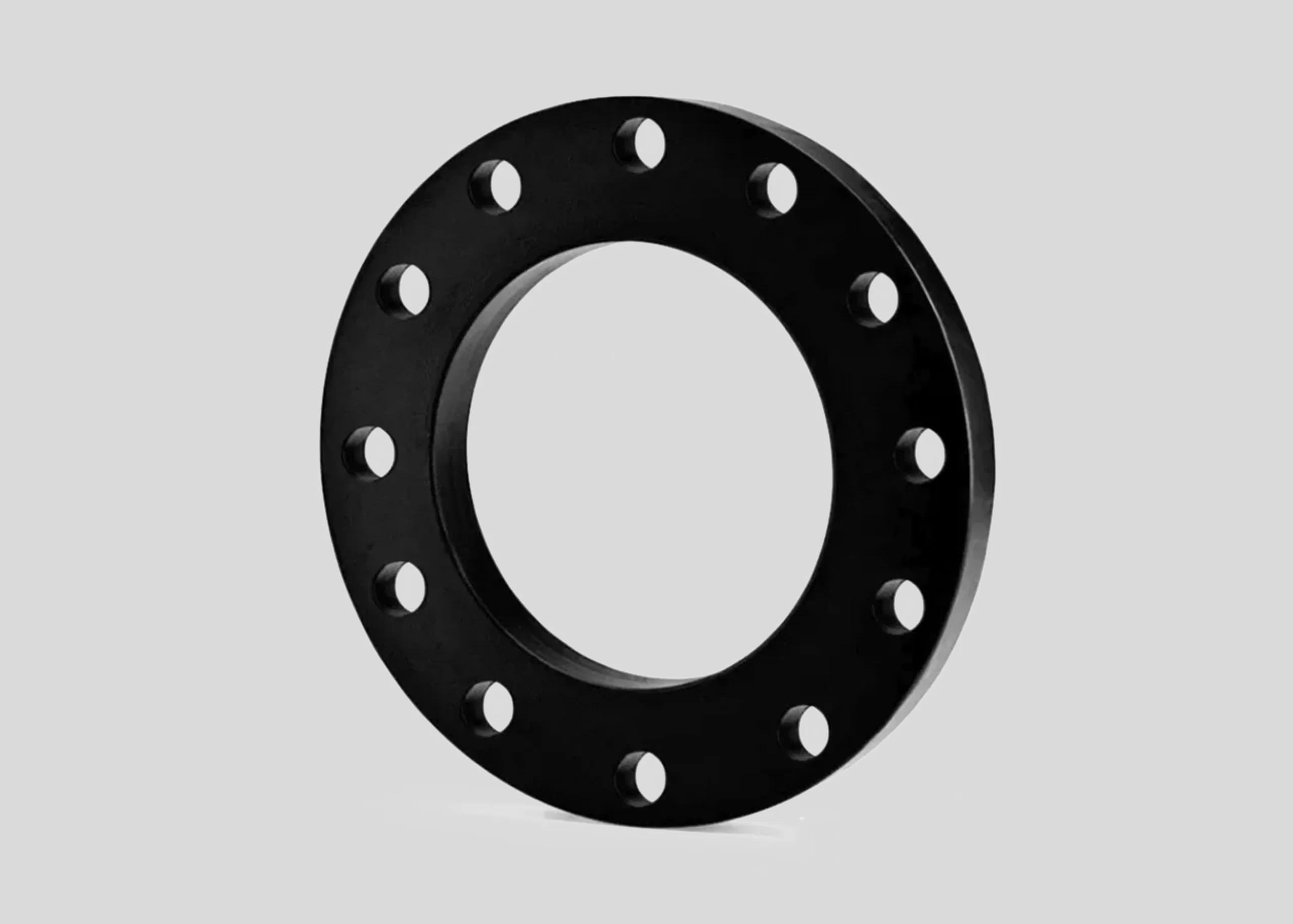

Grooved End Flange
Applications
- Designed for Direct Connection of Flanged Components into a Grooved End Piping System
- Grooved End Flange Adopter for Grooved End Pipe or Irrigation Products Combine the Features of a Straight Line
- The Flange Clip Engages the Groove Around the Entire Pipe Circumference, Locking the Pipe Together
Features
- Material: Reinforced Nylon
- Connection Size: 3" (Dn80), 4" (DNIOO) & 6" (DN150) Grooved Pipe End
- Color: Black
- Chemical Resistant: Good Resistance to Chemicals While Used In Irrigation System
- Grooved End Flange Adopter Is Also Known as Victaulic Flange Adopter
- Grooved End Flange Adopter Allow Easy Removal of Pipe Sections or Irrigation Filters/ Hydrocyclone for Replacement, Cleaning and Service
- It Also Has Excellent Resistance to Weak and Strong Alkalies and to Most Organic Solvents
- Flange Dimensions Suited for Standard: Bs10 (Table D & E), Ansi Class 125/150, Iso (Din), Bs En 1092
- It Has a Three-Piece Design (Flange, C-Clip & Seal)
- No Heat or Threading Required to Coupling Two Groove End Connections
- Since the Grooves Are Not as Deeply Cut as Threaded Pipes, Less Material Is Removed and More of the Pressure Rating of the Product/ Pipe Is Retained
- Fast Installation and Easy Dismantling of the System for Maintenance
| Part No | Description | Material |
|---|---|---|
| 1 | Grooved Flanged | Reinforced nylon |
| 2 | C-Clip | Polyacetal |
| 3 | Seal | NBR |
| Technical Specification & Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Diameter (mm/Inch) | Max. Operating Pressure (kg/cm2) | Overall Diameter (mm) | Bolt Circle Diameter (mm) | Bolt Circle Diameter (mm) | Flange Thickness (mm) | Overall Thickness (mm) | Nut & Bolt | |
| DN | PN | A | B1 | B2 | D | E | QTY | Size |
| 80(3”) | 10 | 202 | 151.5 | 164 | 24.75 | 30 | M16 | 8 |
| 100(4”) | 10 | 229 | 175.5 | 190 | 24.75 | 35 | M16 | 8 |
| 150(6”) | 10 | 300 | 235 | 261 | 31 | 37.5 | M20 | 8 |
